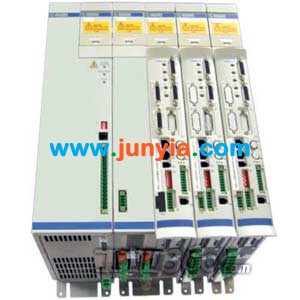

NUM servo drives (MDLU3014, MDLU3021, MDLU3034, MDLU3050, MDLU3075, MDLU3130, MDLU3200) modern design with the powerful NUM CNC system formed a perfect fit. One of its key features is the high power density in a small space it can be completed within a large computing tasks and strong driving force, with a high power / volume ratio.
NUM servo drive performance it has a very wide range of versatility, providing a high level of current intensity, contour accuracy, processing speed and position loop bandwidth and is suitable for a variety of sensors and motors. Modular design, which are connected together several drives share the same power supply, improvement of energy loss and complex wiring.
NUM newly developed NUMDriveC drive can be pided into Mono-A xi axis control) and Bi-A x-axis control) two, by definition, a Mono-A xi drive module can control a servo axis, and a Bi-A x drive module can simultaneously control two servo axes, thus providing the most economical solution. Based on this, NUM drive module will be split into two units: the servo power unit and the servo control unit. The advantage is obvious that there is a problem when the driver can quickly find the cause, just maintenance or replacement of the corresponding unit can be greatly reduced maintenance costs.
Means a fixed height and width can be adjusted in multiples of 50mm in order to layout design.
Single control driver
|
|
|
MDLU3014A… |
MDLU3021A… |
MDLU3034A… |
MDLU3050A… |
||||
|
Switching frequency |
kHz |
5 |
10 |
5 |
10 |
5 |
10 |
5 |
10 |
|
Rated Current |
Arms |
8.9 |
6 |
13 |
8 |
13 |
8 |
28 |
18 |
|
Maximum current |
Arms |
10 |
15 |
24 |
35 |
||||
|
Auxiliary power consumption * |
W+/-5% |
21 |
25 |
||||||
|
Protection class ** |
|
IP20 |
IP20 |
||||||
|
External dimensions |
Mm |
50×355×206 |
100×355×206 |
||||||
|
Weight *** |
Kg |
3 |
5.9 |
||||||
|
Drive end motor connector |
|
AEOCON009 |
AEOCON013 |
||||||
|
Drive end sensor connector |
|
AEOCON012 |
AEOCON012 |
||||||
|
|
|
MDLU3075A… |
MDLU3130A… |
MDLU3200A… |
|||
|
Switching frequency |
kHz |
5 |
10 |
5 |
10 |
5 |
10 |
|
Rated Current |
Arms |
34 |
23 |
60 |
42 |
100 |
70 |
|
Maximum current |
Arms |
53 |
92 |
141 |
|||
|
Auxiliary power consumption * |
W+/-5% |
25 |
45 |
||||
|
Protection class ** |
|
IP20 |
IP00 |
||||
|
External dimensions |
Mm |
100×355×206 |
200×355×206 |
||||
|
Weight *** |
Kg |
5.9 |
11 |
||||
|
Drive end motor connector |
|
AEOCON013 |
- |
||||
|
Drive end sensor connector |
|
AEOCON012 |
AEOCON012 |
||||
Biaxial control driver
|
|
|
MDLU3014B… |
MDLU3021B… |
MDLU3050B… |
|||
|
Switching frequency |
kHz |
5 |
10 |
5 |
10 |
5 |
10 |
|
Rated Current |
Arms |
6.3+6.3 |
4.2+4.2 |
6.3+6.3 |
4.2+4.2 |
20+20 |
13+13 |
|
Maximum current |
Arms |
10+10 |
15+15 |
35+35 |
|||
|
Auxiliary power consumption * |
W+/-5% |
24 |
31 |
||||
|
Protection class ** |
|
IP20 |
IP20 |
||||
|
External dimensions |
Mm |
50×355×206 |
50×355×206 |
100×355×206 |
|||
|
Weight *** |
Kg |
3 |
3 |
6.2 |
|||
|
Drive end motor connector |
|
AEOCON009 |
AEOCON013 |
||||
|
|
|
AEOCON012 |
|||||
|
