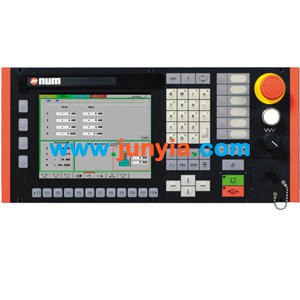

NUM CNC operator panel：
(NUM HMI) and FS series includes CP series, the specific models are as follows:
NUM CP30F Panel: 12 "LCD QWERTY keyboard
NUM CP20F Panel: 8.4 "LCD, a smaller space
NUM CP10F Panel: 8.4 "LCD integrated control panel (user-defined keys, emergency stop button, start button, stop button, etc.
NUM FS20 Panel: 10 "LCD long and narrow, with a QWERTY keyboard
NUM POP Panel: 6 "LCD for lower-level machine tool applications (teaching function, PROCAM, ISO, adjustment and production functions)
FS151I-KBD operator panel：
Industrial PC performance, high reliability, flexible operator panel with 22 function keys, optional extended keyboard
FS151I points FS151I-KBD P1 CF and FS151I-KBD P2 HD, flash memory and hard disk models. With the same width as the MP03, built numtools special software and numpass dedicated interface software. Operating system is windows xp pro, convenient secondary development.
Dimensions: Length 410mm x width 400mm x height 96mm thick 8mm
Screen technology: 15-inch TFT LCD Resolution 1024x768
Power: 24VDC
Protection class: front IP65 IP20 rear
Match: MP03 machine operator panel
Model: FS151I-KBD P1CF FS151I-KBD P2 HD
CPU: Celeron M 800 Mhz (P1) Pentium M 1.8GHz (P2)
Operating system: Windows XP Windows XP Embedded Professional Edition
Memory: DDR 512 MB DDR 1GB
HDD: P1: Flash 1GB P2: 40G HDD
Power: P1: 65W P2: 70W
Order No.: APPC 555 510 APPC 555 513
